Truck Fender Roll Forming Machine

Short Description:

Description Roll forming machine can produce truck fenders, truck fenders have multi axle fender, half fender, and single axle fender. After roll forming machine, the curving machine can control the curved radian, so you will have above three types of trailer mudguard. There are three common materials for truck fenders: stainless steel fender, aluminium fender and plastic fender. Roll forming machine can produce stainless steel fender and aluminium fender. For aluminium material, the n...


  • Min.Order Quantity: 1 machine
  • Port: Shanghai
  • Payment Terms: L/C, T/T
  • Warranty period: 2 years
  • Product Detail

    Profile draiwngs

    Optional configuration

    Description

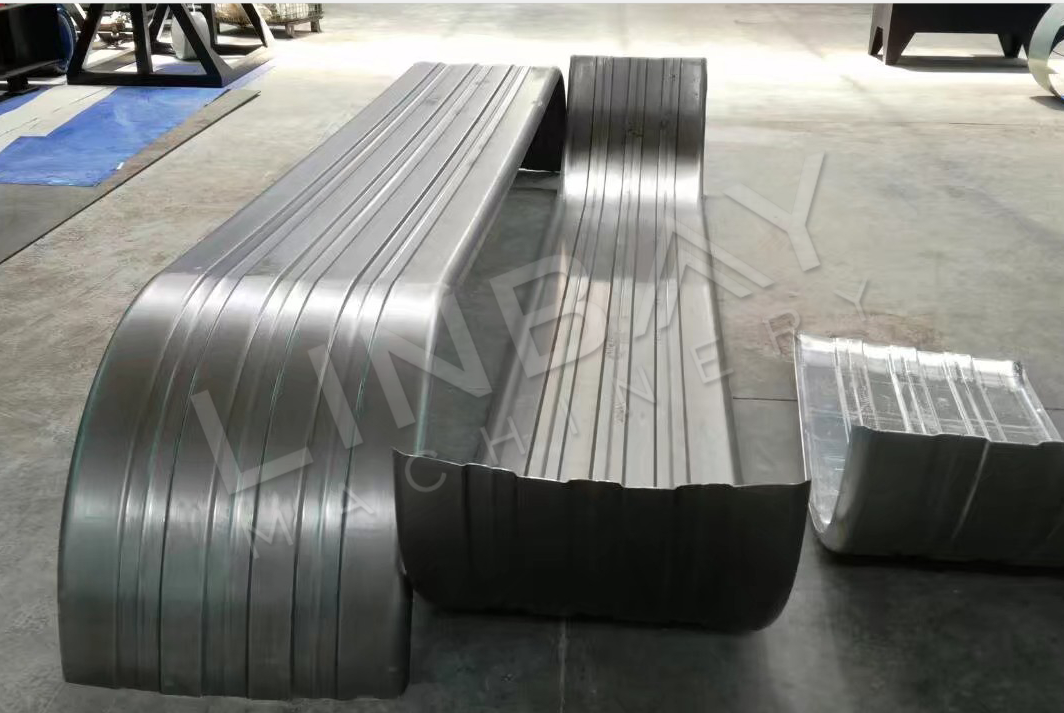

    Roll forming machine can produce truck fenders, truck fenders have multi axle fender, half fender, and single axle fender. After roll forming machine, the curving machine can control the curved radian, so you will have above three types of trailer mudguard. There are three common materials for truck fenders: stainless steel fender, aluminium fender and plastic fender. Roll forming machine can produce stainless steel fender and aluminium fender. For aluminium material, the normal thickness is 2.3mm.semi truck trialer

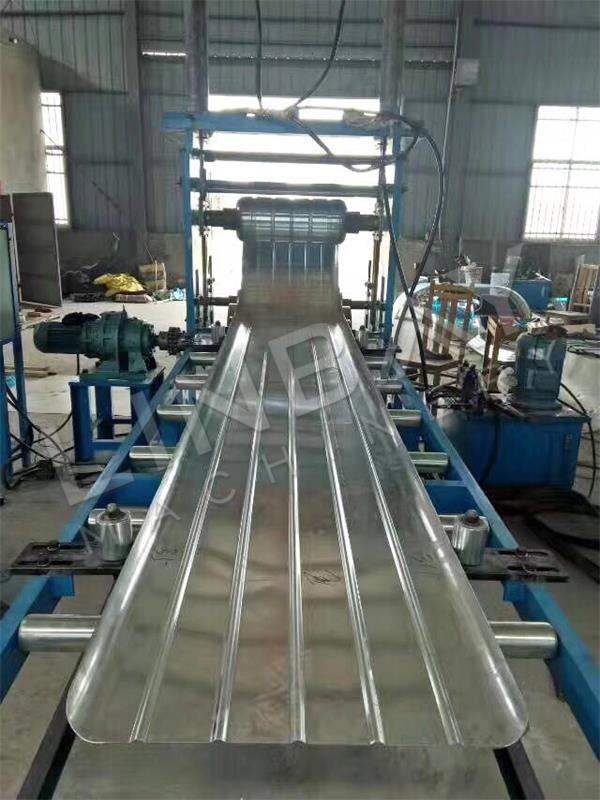

    Curving machine

    curving machine

    Application

    half truck fender semi truck fender single axle truck fender

    CAD drawing

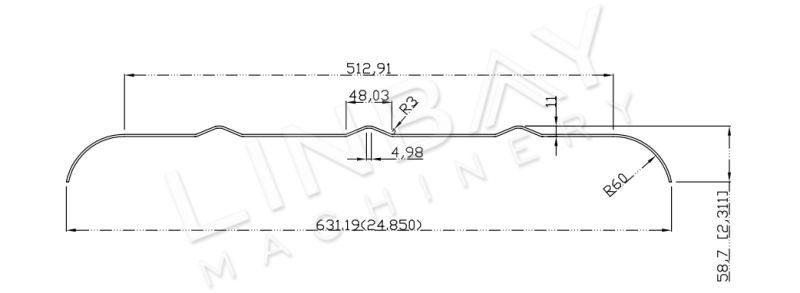

    truck fender 1

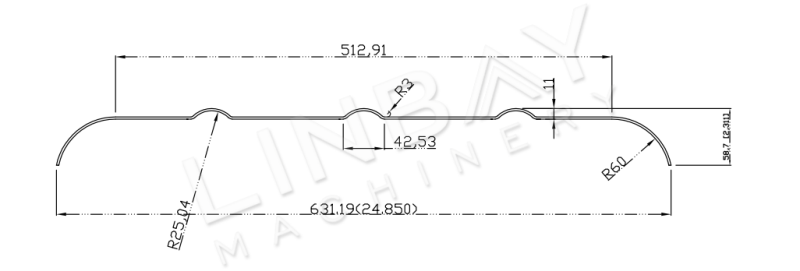

    truck fender 2

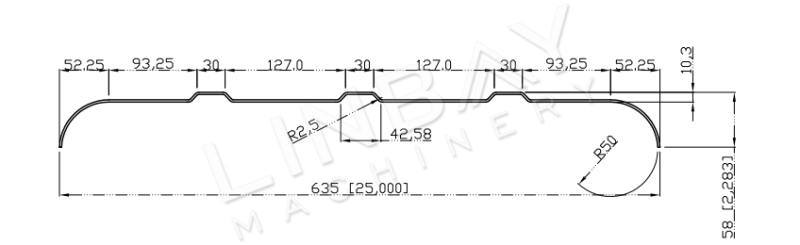

    truck fender 3

    Real Case A

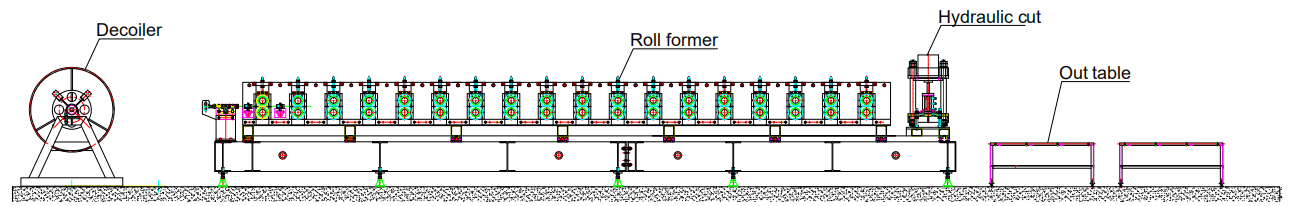

    Trapezoidal Roof Panel Roll Forming Machine Real case1





    Decoiler--Guiding--Cut corner--Roll former--Hydraulic cut--Out table--Curving machine

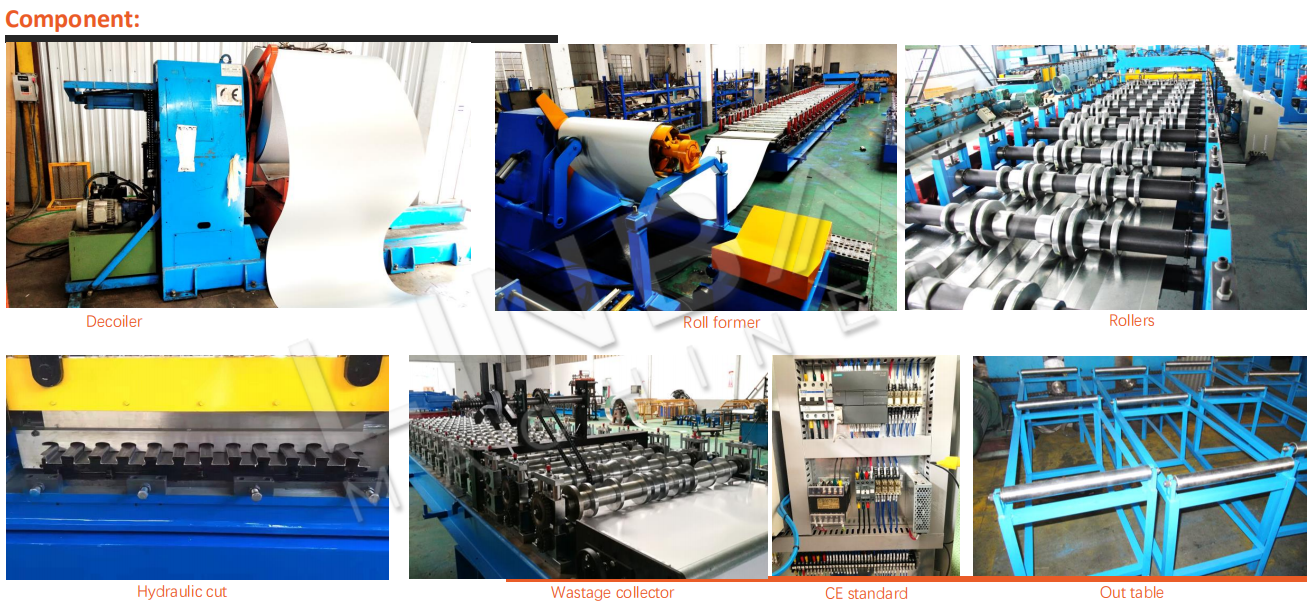

    Corrugated Roof Panel Roll Forming Machine Component

    Technical Specifications

    Trapezoidal Roof Panel Roll Forming Machine

       Machinable Material :    A) Galvanized Coil  Thickness(MM):0.3-0.8
       B) PPGI
       C) Aluminum Coil
       Yield strength :    200 - 350 Mpa
       Tensil stress :    200 Mpa-350 Mpa
       Nominal forming speed(M/MIN)    0-20  * Or according to your requirement (Optional)
       Forming station :    18 stands  * According to your profile drawings (Optional)
       Decoiler :    Manual decoiler  * Hydraulic decoiler (Optional)
       Punching system    No  * Hydraulic punching (Optional)
       Main machine motor brand :    Sino-Germany Brand  * Siemens (Optional)
       Driving system :    Chain drive  * Gearbox drive (Optional)
       Machine structure:    Wall panel station  * Forged Iron station or torri stand structure (Optional)
       Rollers’ material :    Steel #45  * GCr 15 (Optional)
       Cutting system :    Post-cutting  * Pre-cutting (optional)
       Frequency changer brand :    Yaskawa  * Siemens (optional)
       PLC brand :    Panasonic  * Siemens (optional)
       Power supply :    380V 50Hz  * Or according to your requirment
       Machine color :    Industrial blue  * Or according to your requirment



    Q&A

    1.Q: What kinds of experience do you have in producing roof panel roll forming machine?

    A: Roof/wall panel (corrugated panel) roll forming machine is the most produced machine, we have many experience of this machine. We have exported to India, Spain, UK, Mexico, Peru, Argentina, Chile, Bolivia, Dubai, Egypt, Brazil, Poland, Russia, Ukraine, Kazakhstan, Bangladesh, Bulgaria, Malaysia, Turkey, Oman, Macedonia, Cyprus, USA, South Africa, Cameroon, Ghana, Nigeria etc.

    In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling T bar roll forming machine, wall angle roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.

    2.Q: How many profiles can produce this machine?

    A: According to your drawing, specially the height and pitch of each wave, if they are the same, you could produce several sizes with different feeding coil width. If you want to produce one trapezoidal panel and one corrugated panel or a roof tile, we would recommend you a double layer roll forming machine to save your space and cost of machine.

    3.Q: What is delivery time of trapezoidal roof panel making machine?

    A: 45 days to design from beginning to lubricate all rollers before shipment.

    4.Q: What is your machine speed?

    A: Our forming speed is 0-20m/min adjustable by Yaskawa frequency changer.

    5.Q: How could you control your machine’s precision and quality?

    A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

    6. Q: What is your after-sales service system?

    A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

    Purchase Service

    purchase service


  • Previous:
  • Next:

  • cable tray roll forming machine profile cable tray roll forming machine profile cable tray roll forming machine

    1. Decoiler

    1dfg1

    2. Feeding

    2gag1

    3.Punching

    3hsgfhsg1

    4. Roll forming stands

    4gfg1

    5. Driving system

    5fgfg1

    6. Cutting system

    6fdgadfg1

    Others

    other1afd

    Out table

    out1
