Wire Mesh Fence Post Roll Forming Machine

Short Description:

Description Roll forming machine has a big range application, Linbay Machinery has made roll forming machines for metal fence post. Linbay roll forming machine can make wire mesh fence post, metal fence post for wood fence. Wire mesh fence post normally uses peach type profile, thickness is 1-1.2mm, cold rolled or hot rolled steel, galvanized steel, Peach post curved fence is widely used in express highway, railway, airport, the city roads, grand square and flower and grass fences etc....


  • Min.Order Quantity: 1 machine
  • Port: Shanghai
  • Payment Terms: L/C, T/T
  • Warranty period: 2 years
  • Product Detail

    Profile draiwngs

    Optional configuration

    Description

    Roll forming machine has a big range application, Linbay Machinery has made roll forming machines for metal fence post. Linbay roll forming machine can make wire mesh fence postmetal fence post for wood fenceWire mesh fence post normally uses peach type profile, thickness is 1-1.2mm, cold rolled or hot rolled steel, galvanized steel, Peach post curved fence is widely used in express highway, railway, airport, the city roads, grand square and flower and grass fences etc. It not only protects the safety of vehicles and pedestrian, but also beautifies the space environment. The metal posts for wood fence system can last for decades that allow the beauty of the wood to remain prominent, while providing the superior strength of metal. Popular thickness is 3mm.

    LINBAY roll forming machine can make lots of post profiles, guardrail postsolar photovoltaic stentsvineyard post etc.



    Application

    3D-Drawing

    wire mesh fence post (1)
    wire mesh fence post

    Wire Mesh Fence Post

    Wood fencing with metal fence post (2)

    Z Post/Metal Fence Post for wood fencing system

    wood fencing with metal fence post

    Metal Fence Post for wood fencing system

    CAD drawing

    Wire mesh fence (4)
    Wire mesh fence (5)

    Wire Mesh Fence Post-India

    Wire mesh fence (6)

    Wire Mesh Fence Post-Algeria

    Wire mesh fence (7)

    Wire Mesh Fence Post-Russia

    Z post metal fence post

    Metal Fence Post

    metal fence post

    Z Post/Metal Fence Post

    Real Case A

    wire mesh fence post roll forming machine

    Introduction A:

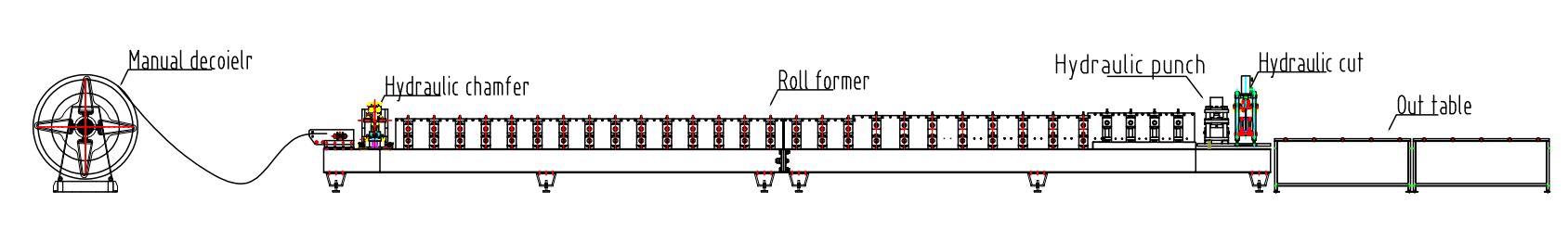

    This wire mesh fence post roll forming machine has a basic configuration: manual decoiler-hydraulic chamfer-roll former-hydraulic punch-hydraulic post cut-out table. At the feeding part of the roll forming machine, we make a chamfer device, this is easy for post cutting. The punch system equipped on the roll former, it can reduce the machine’s cost it’s an economic choice, but the working speed will be low, around 4m/min. Customer can choose Case B’s machine configuration if you want a fast speed roll forming machine.



    Real Case B

    wire mesh fence post roll forming machine

    Introduction B:

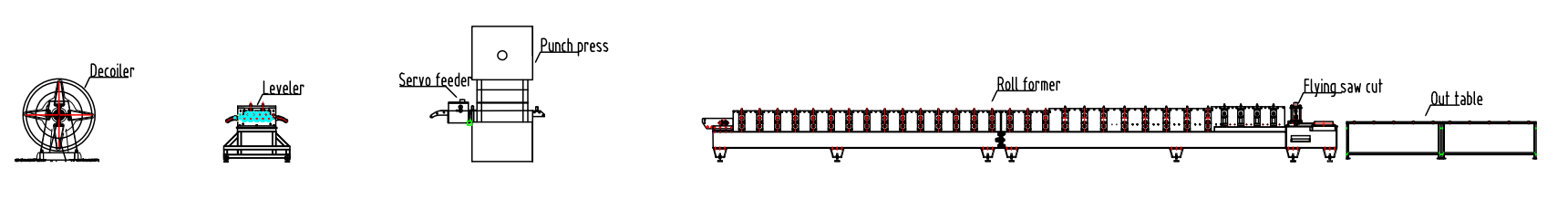

    This wire mesh fence post roll forming machine has a high speed and precision configuration: manual decoiler- leveler-servo feeder-punch press- roll former-flying saw cut-out table. The servo feeder system uses Yaskawa servo motor to control the feeding length for the punch press, then you will have a high-precision at the holes punch part. The 80Tons press can offer a fast punch speed compared hydraulic punch system, it can double the production, up to 8m/min. Normally we suggest our customer buy Yangli brand press JH21-80. The roll former part we use 26 forming stations to ensure the profile prefect and 2 riveting rollers to make profile together. With this fast speed, we put a flying saw cut device, which will not stop the roll former when cutting. The saw cut has a smaller burr and wastage(around 3mm). This is the best roll forming machine solution we suggest for wire mesh fence post.

    Linbay make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

    Whole Production Line of Wire Mesh Fence Post Roll Forming Machine

    Corrugated Roof Panel Roll Forming Machine Component

    Technical Specifications

    Metal Fence Post Roll Forming Machine
       Machinable Material :    A) Galvanized Steel  Thickness(MM): 0.7-1.3, 3mm
       B) Black steel
       C) Carbon steel
       Yield strength :    ≤350 Mpa
       Tensil stress :    ≤350 Mpa
       Decoiler :    Manual decoiler  * Hydraulic decoiler (Optional)
       Punching system :    Hydraulic punching station  * Punching press 80Tons (Optional)
       Forming station : 26
       Mian machine motor power:    2*11KW
       Main machine motor brand :    Shanghai Dedong (Sino-Germany Brand)  * Siemens Beide (Optional)
       Driving system :    Chain drive
       Machine structure:    Wall panel type  * Forged Iron station (Optional)
       Working speed :    4 (M/MIN)  * 6-8m/min (Optional)
       Rollers’ material :    45 steel  * GCr15 (Optional)
       Cutting system :    Post hydraulic cutting  * Flying saw cutting (Optional)
       Frequency changer brand :    Yaskawa  * Siemens (Optional)
       PLC brand :    Panasonic  * Siemens (Optional)
       Power supply :    380V 50Hz 3ph  * Or according to your requirment
       Machine color :    Industrial blue  * Or according to your requirment

    Purchase Service

    purchase service

    Q&A

    1. Q: What kinds of experience do you have in producing wire mesh fence post roll forming machine?

    A: We have exported wire mesh fence post production line to Algeria, Russia and Indonesia. The metal fence post has a Z shape profile, which is very common profile drawing, and we have exported thousands of Z profile roll forming machines.



    2. Q: What is delivery time of wire mesh fence post roll forming machine?

    A: 60 days normally.



    3. Q: What is your machine speed?

    A: Machine’s working speed depends on drawing specially punch drawing. Now we have made two different machines, which is faster with punch press, its speed is 8m/min, and the other more economic one has speed around 4m/min.



    4. Q: How could you control your machine’s precision and quality?

    A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.



    5. Q: What is your after-sales service system?

    A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
