Metal louver panels are commonly applied in industrial ventilation systems and building facades, providing effective airflow while helping reduce exposure to rain and direct sunlight.
LINBAY MACHINERY develops customized roll forming lines for metal louvers based on customer profile drawings, material specifications, and production demands.
Metal Ventilation Louver Panel
Metal louver panels are designed with angled blades that promote airflow while offering protection against outdoor weather conditions.
These panels are widely applied in industrial buildings, warehouses, and ventilation-related projects where both airflow and shielding are required.
Main advantages:
Supports natural air circulation
Helps prevent direct rain penetration
Reduces sunlight exposure and heat gain
Suitable for a wide range of industrial environments
Metal Louver Roll Forming Line
The metal louver roll forming line is engineered to manufacture louver panels with reliable operation and accurate profile forming.
Each production line is tailored according to project specifications, allowing adjustment of blade inclination, profile spacing, and material thickness to match customer requirements.
Equipment benefits:
Customized machine design based on customer drawings
Compatible with various material gauges, including 18 gauge (approx. 1.2 mm)
Accurate and consistent roll forming performance
Automatic operation with dependable production stability
Built for long-term and continuous industrial manufacturing
Manufacturing Process

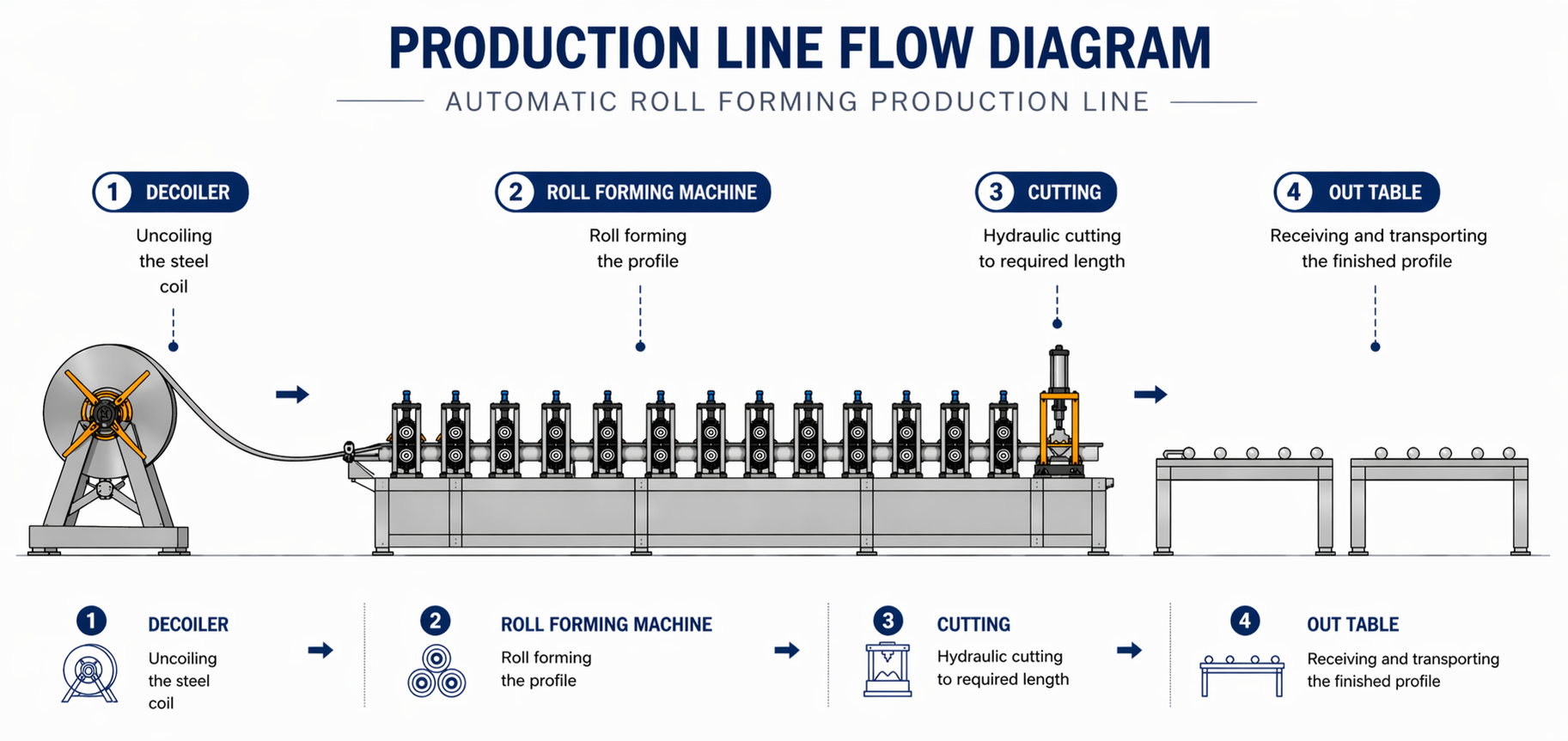

A typical metal louver roll forming line is composed of the following working sections:
Hydraulic decoiler for material feeding
Roll forming unit for profile shaping
Hydraulic cutting system for length control
Discharge table for finished panel collection
Flexible Louver Forming Solutions
LINBAY provides adaptable roll forming solutions for manufacturing various metal louver panel designs.
Each production line can be configured to meet specific project requirements, including:
Profile geometry and panel configuration
Louver blade inclination
Blade pitch and spacing
Material gauge and thickness
| Louver Roll Forming Machine | ||
| Item | Information adicional | |
| Raw material: | Galvanized steel | Thickness(MM): 1.2mm/18 gauge |
| Yield strength: | ≤300 Mpa | |
| Line speed: | 0-15m/min | |
| Decoiler: | Manual | |
| Decoiler loading capacity: | 1.5T | |
| Roll forming motor power: | 7.5kw | 5 years warranty |
| Transmission system: | Chain | |
| Roll forming stations: | 14 stations | |
| Machine structutre: | Cast iron support | |
| Shaft material: | 40Cr | |
| Roller material: | Cr15 | 5 years warranty |
| Shaft diameter: | φ55 mm | 5 years warranty |
| Cutting method: | Hydraulic cutting | Stop cut |
| Material of blade: | SKD-11 | 1 set |
| Hydraulic cut method: | 5.5kw | |
| Encoder brand: | Omron | |
| Length tolerance: | ≤+/- 1mm | |
| Out table length: | 4m | |
| Inverter: | Yaskawa Brand | |
| PLC: | Siemens Brand | |
| HMI: | MCGS Brand | |
| Language: | English | Or spanish |
| Power supply: | 380V 50Hz 3Ph | * Or according to your requirement |
| Color: | White | * Or according to your requirement |
| Delivery: | 90 Days | |
| Container: | 1*40GP | |
| Total weight: | 5T | |
| Dimension: | 12m*1.6m | |
Request a Customized Solution
If your project involves a specific metal louver panel design, LINBAY can develop a roll forming solution tailored to your production requirements.
Our engineering team is ready to evaluate your application and recommend the most suitable machine configuration for efficient and reliable production.
1. Decoiler
2. Feeding
3.Punching
4. Roll forming stands
5. Driving system
6. Cutting system
Others
Out table
